DWDM Mux/Demux Athermal AWG Module 40 Channel AAWG WDM-PON CATA System

DWDM Mux/Demux Athermal AWG Module 40 Channel AAWG WDM-PON CATA System Long Distance communication

Athermal AWG (Arrayed Waveguide Grating) is a high performance DWDM mux/demux device operating on 100GHz channel spacing without power. The planar processed silica-on-silicon chips comprise arrayed channel waveguides to separate or combine multiple wavelengths. Carefiber Athermal AWG s allow multiplexing and demultiplexing of DWDM signals over a wide operating temperature range, without the need for heater drive and monitoring electronics.

These AWG offer low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package. it simplifies deployment of AWG multiplexers/demultiplexers by DWDM network providers.

Features:

1. athermal design operates over operating temperature range

2. Large channel numbers

3. Compact size

4. High Stability and reliabitity

5. Low insertion loss, high isolation increase system margin

Applications:

1. WDM transmission

2. Metro and long haul network

Hardware Specification

Long Distance CommunicationAthermal AWG Module

Athermal AWG Module 40 Channel

Demux Athermal AWG Module

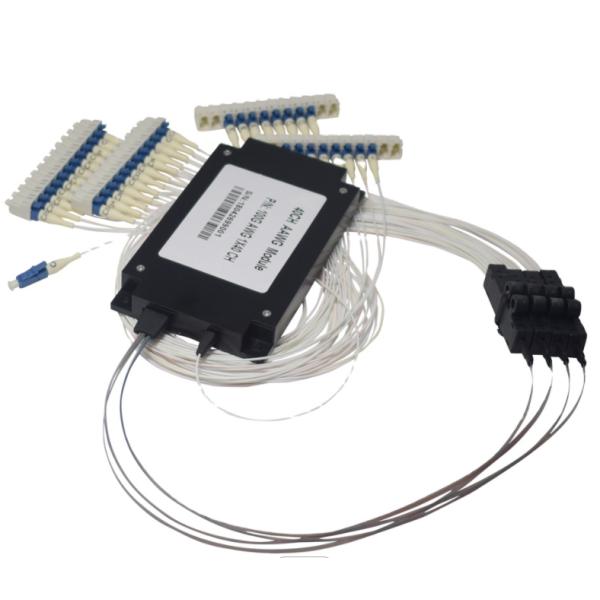

DWDM Mux/Demux Athermal AWG Module 40 Channel AAWG WDM-PON CATA System Images
